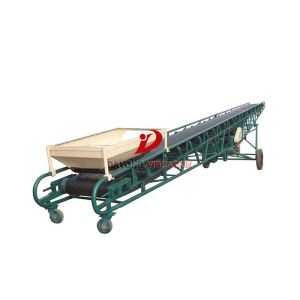

Mobile Handling System Powered Industrial Material Belt Conveyor System
Product Description
Belt conveyor which is also called ribbon conveyor, rubber belt conveyor.
Widely applied to many industries,such as Metallurgical mines, coal, port, transportation, water and electricity, chemical industry, etc.
There are two kinds of conveyor belt which are commonly used: rubber belt and plastic belt and steel belt etc.
Rubber belt is suitable for the working environment temperature which is between 15~40 ℃.
The temperature of conveying material is no more than 50℃, if exceed ,please choose high temperature resistant conveyor belt.
For bulk material, the upward transportation inclination is 12°~24°.
Main Advantages
1. Innovatively designed for low cost operation.
2. Impressive radial stockpiling capacities.
3. Superb manoeuvrability around site.
4. Designed for quick and efficient transportation.
5. Unique long life, low maintenance.
6. Optional power sources diesel direct electric, hydraulic / coupling, dual power(diesel electric / mains electic).
7. Can be coupled to any crusher, screen, shredder or wash plant.
8. Rapid on site set-up time.
9. Eliminates need for wheel loaders to build stockpiles, reducing labor maintenance cost.
10. Global after sale support.
Product Application
1. Chemical industry: resin, pigment, cosmetic, coatings, medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Recycle: disposed oil, disposed water, disposed dye waste water, active carbon.
6. Pharmaceutical industry.
Technical Parameters
| Belt Width (mm) | Belt Length(m) | Belt Speed (m/s) | Capacity (t/h) |
| Power(kw) |
| 400 | ≤12 | 12-20 | 20-25 | 0.8-2 | 40-80 |
| 1.5 | 2.2 | 3 |
| 500 | ≤12 | 12-20 | 20-30 | 0.8-2 | 78-191 |
| 3 | 4 | 5.5 |
| 650 | ≤12 | 12-20 | 20-30 | 0.8-2 | 131-323 |
| 4 | 5.5 | 7.5 |
| 800 | ≤10 | 10-15 | 15-25 | 1.0-2 | 278-546 |
| 4 | 5.5 | 7.5 |
| 1000 | ≤10 | 10-20 | 20-25 | 1.0-2 | 435-853 |
| 5.5 | 7.5 | 11 |
| 1200 | ≤10 | 10-20 | 20-25 | 1.0-2 | 655-1284 |
| 7.5 | 11 | 15 |
Attention1:
This belt conveyor can be designed and manufactured by customers' specific requirements.
Attention2:
The belt conveyor also be called as other name in different country, for example, sometimes will also named it as Portable belt conveyor; adjustable belt conveyor; inclined belt conveyor; mobile belt conveyor and so on.
FAQ
1. The capacity that you require?
2. Whats the material to be conveyed?
3. The conveying length and the width of the belt?
4. Whether need adjust height of the motor?
5. The conveying angle?
